N-BOX-T1

Model : N-BOX-T1

Description :
◆ Intel Baytrail-D / I / M j1900/n2806/E3845 series processors;
◆ DDR3L 1.35V SODIMM 204 Socket Ram socket max support 8gb Ram;
◆Onboard 32/64/128G EMMMC chipset (Optional);
◆ Mini-PCIE socket，support wifi Module，combine with SIM card slot ，support 3G Module(only support USB singal equipment)；
◆4*USB Port /2*Intel I211 lan Card,1*HDMI,1*DP display connector;

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Intel Baytrail-D / I / M j1900/n2806/E3845 series processors;

◆ DDR3L 1.35V SODIMM 204 Socket Ram socket max support 8gb Ram

◆Onboard 32/64/128G EMMMC chipset (Optional)

◆ Mini-PCIE socket，support wifi Module，combine with SIM card slot ，support 3G Module(only support USB singal equipment)；

◆4*USB Port /2*Intel I211 lan Card,1*HDMI,1*DP display connector

Specifications

? Case	name	N-BOX-t1
	color	Black
	size	12613440.6mm
	material	6063
? ? Motherboard	Chipset	Baytrail-I/D/M serial chipset
	CPU	Support Baytrail-I/D/M serial Processor ?(J1900 J1800/n2806/n2900/e3845)
	memory	Single Channel 1?*DDR3L?1333/1600MHz?ram socket ，Max support 8G
	Graphic card	Intel HD Graphics
	Sound	Integrated Realtek ALC662 HD
	expansion	1*Mini-PCIe slot, only supports PCIE signaling devices
	expansion	1MINI-SATA?connector?for SSD??1Sata2.0 for HDD
Storage	HDD	2.5inch laptop hard disk
	SSD	SSD
	EMMC	32/64/128G（optional ）
function	Display output	HDMI/DP
	Internet Output	2*Intel I211?Lan Port
	USB	4USB2.0 Port (3USB2.0/1*USB3.0)

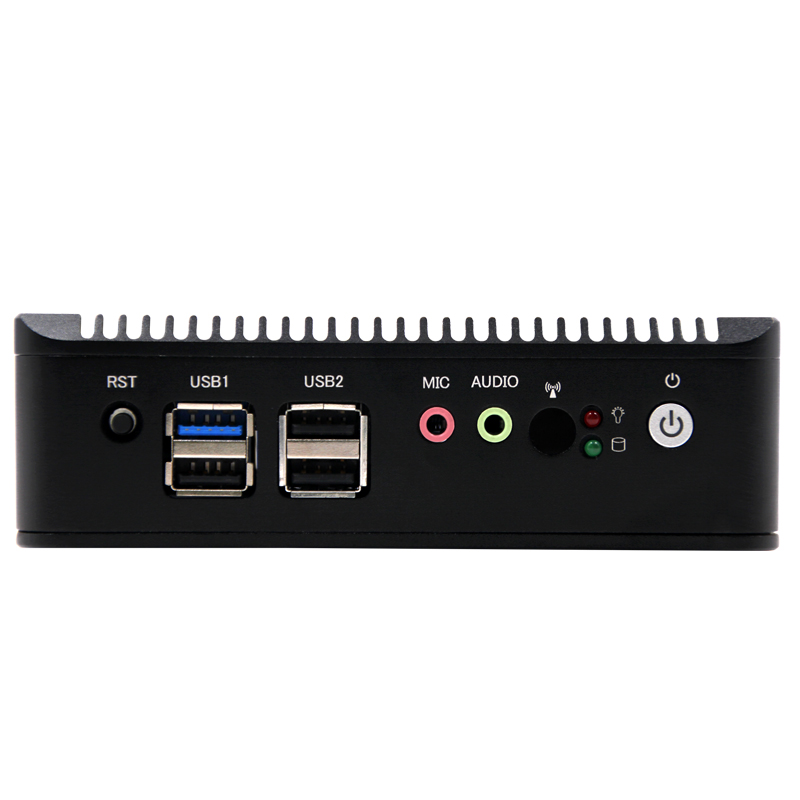

	Front I / O interface	1 * Power switch (with indicator light), 1 * Reset button, 1 * HDMI, 1 * DP, 4* USB/1*RJ45 RS232 Com

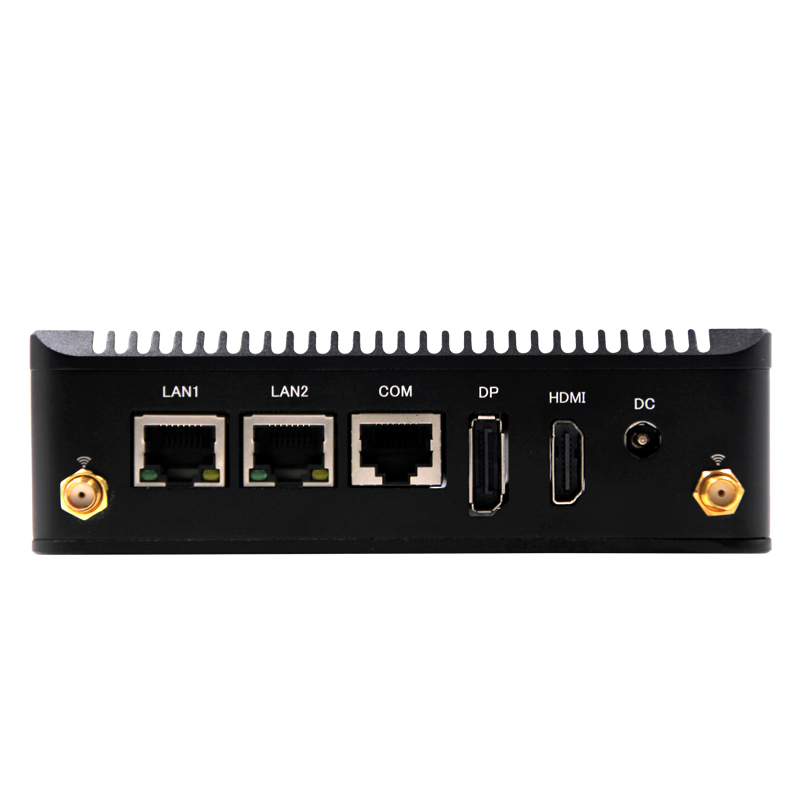

	Rear I / O connector	2?* Intel I211 high-performance Gigabit Ethernet, 1 * power indicator, 1 * hard drive indicator, 1 * DC power supply interface
	Working temperature	-10~60℃
	Operating system	Windows7/Windows 8/Windows8.1 /Windows10/linux
	Power supply	DC12V?power supply

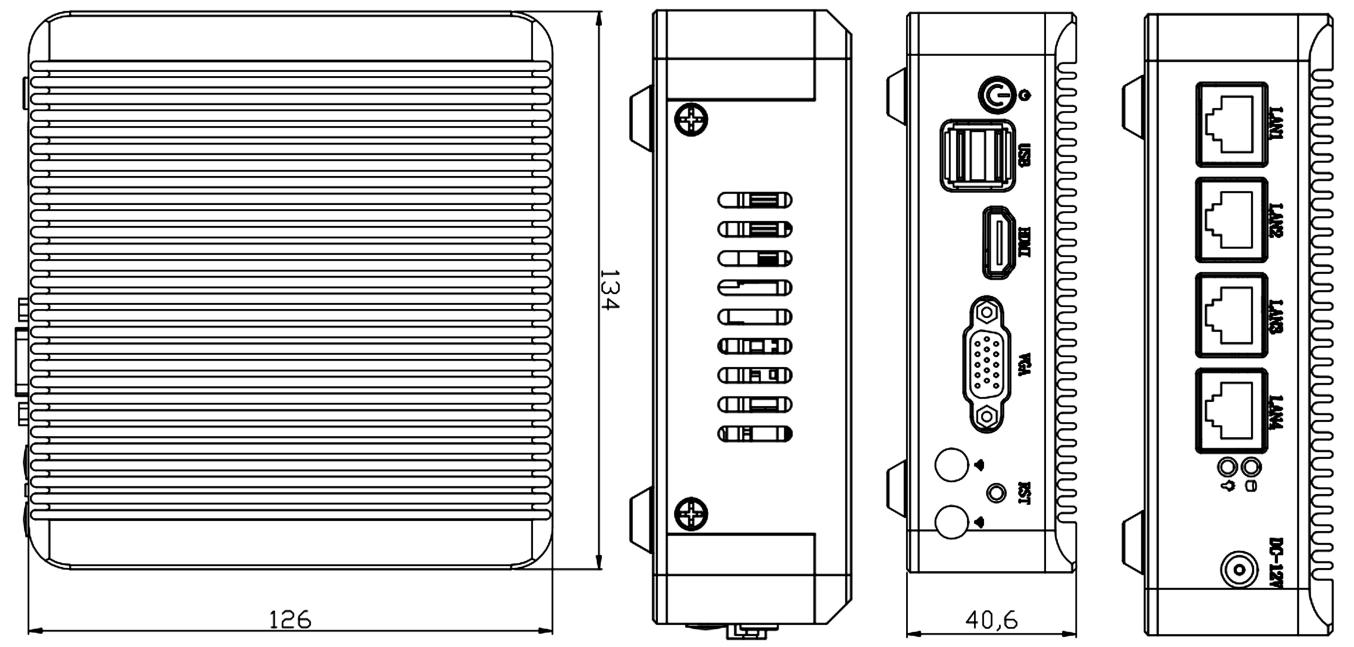

Size?

Ordering Information

Model

description

CPU?optional

?

BT19NA4L-J1900

Integrated Celeron Baytrail J1900

Quad core 2.0Ghz up to2.4Ghz

DDR3 SODIMM 204 Socket?ram ,max to 8gb

Embedded 32G/64/128G EMMC?chipset （optional）

J1900(quad core）

BT19NA4L-J1800

Integrated celeron Baytrail J1800

Dual core 1.6Ghz up to2.0Ghz

DDR3 SODIMM 204 Socket?ram socket ,max tobe 8gb ram

Embedded 32G/64/128G EMMC?chipset (optional）

J1800（dual core）
